Vertere PHONO-1 LX – New phono preamplifier adopts the technology of the reference CALON

British analogue specialist Vertere Limited is extending its range of high-quality phono preamplifiers with the new Vertere PHONO-1 LX Phono Preamplifier. Replacing the Vertere PHONO-1 L, the new model draws heavily on technical work originally undertaken for the reference Vertere CALON phono stage. The objective is clear: greater dynamic range, more exact spatial and tonal definition, and a more natural account of voices and instruments. Yet the Vertere PHONO-1 LX is designed to deliver those gains without imposing the operational complexity more commonly associated with professional studio equipment.

Key Facts Vertere PHONO-1 LX Phono Preamplifier

• Latest-generation MM and MC phono preamplifier
• Successor to the Vertere PHONO-1 L
• Circuit technology and refinements derived from the reference Vertere CALON
• Gain adjustable from 40 to 63 dB across 12 settings
• Input impedance adjustable from 78 Ohm to 47 kOhm, with multiple capacitance settings
• Linear power supply with revised voltage regulation
• New grounding switch and optimised RF filtering
• Available in Black Acrylic, Matte Black, Silver or Orange
• Available now at € 1.998,-
• Ten-year warranty following registration with Vertere Limited

Vertere CALON Technology Moves into the PHONO-1 Range

Vertere Limited has long treated its reference products as more than isolated flagship statements. The research behind them is expected to inform subsequent designs, allowing solutions developed without severe cost constraints to find their way into products intended for a broader range of systems.

That principle is central to the Vertere PHONO-1 LX. The development of the reference Vertere CALON provided the groundwork for a number of circuit and construction refinements, several of which now make their first appearance in the PHONO-1 series.

According to Vertere Limited, the cumulative changes are particularly beneficial to dynamic expression, spatial definition and the natural reproduction of voices. Those are precisely the areas in which a phono stage can determine whether a record sounds merely clean and competent or properly alive.

A New Circuit Board for Greater Signal Integrity

Among the most consequential changes is a comprehensively revised circuit board. Vertere Limited now employs higher-quality gold plating on the tracks and contact surfaces, intended to provide more durable, consistently executed solder joints while improving the uniformity of electrical performance throughout the circuit.

Such details are hardly decorative in a phono preamplifier. A cartridge produces an exceptionally small electrical signal, particularly in the case of a low-output moving-coil design. Any weakness in the signal path can therefore become disproportionately significant before the signal has even reached line level.

By improving the board itself rather than merely altering a handful of components, Vertere Limited is addressing the foundations on which the entire amplification stage depends.

Revised Power Architecture Targets Interference at Source

The internal power supply received equally close attention. The revised linear supply is designed to deliver cleaner and more stable DC power to every part of the audio circuit, giving the amplification stages a more consistent electrical foundation.

Vertere Limited has also substantially reworked the mains input section. Specially developed chokes are positioned both before and after the transformer to suppress high-frequency interference as it enters the unit and to prevent RF contamination from reaching either the supply rails or the sensitive audio circuitry.

This is a sensible point at which to tackle noise. Once high-frequency interference has entered a low-level amplification circuit, removing its effects becomes considerably more difficult. The Vertere PHONO-1 LX therefore aims to keep unwanted energy away from the music signal rather than attempting to correct the consequences further downstream.

Cleaner Casework and More Practical Grounding Control

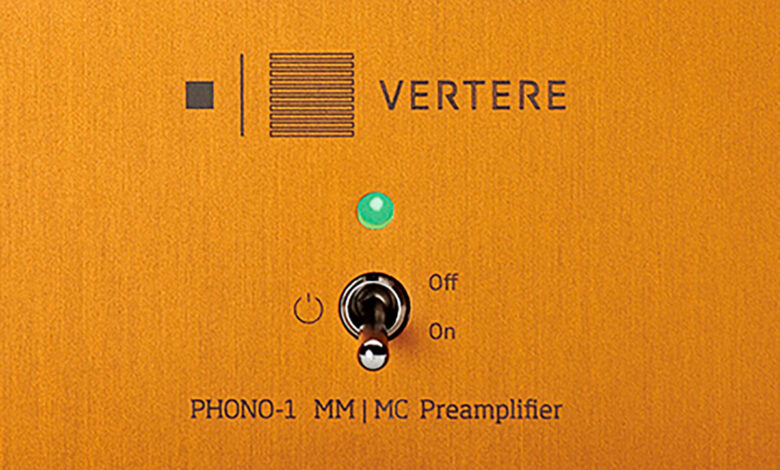

The Vertere PHONO-1 LX is also visually distinct from its predecessor. Its new enclosure employs a finely textured top panel with no visible fixing screws, bringing the phono preamplifier into closer aesthetic alignment with the current Vertere product family.

A new blue-green status indicator echoes the visual language of the Vertere DG X, Vertere Tempo, Vertere Imperium and Vertere CALON. The change is restrained rather than theatrical, which is entirely appropriate for a component likely to spend its working life close to a turntable rather than competing for attention.

More practically, Vertere Limited has fitted a sturdier grounding switch. This allows the grounding path to be either connected or separated, helping the Vertere PHONO-1 LX accommodate different system configurations and providing a direct means of addressing potential ground loops and the hum they can cause.

Extensive Adjustment for MM and MC Cartridges

The Vertere PHONO-1 LX is intended for use with both moving-magnet and moving-coil cartridges, and its adjustment range is one of the design’s defining features.

Gain can be set between 40 and 63 dB across twelve steps. Fourteen input-impedance settings cover values from 78 Ohm to 47 kOhm, while nine capacitance options allow the electrical loading to be refined further.

This breadth matters because cartridge matching is not governed by output level alone. Impedance and capacitance can alter tonal balance, transient behaviour and the overall sense of openness, while insufficient or excessive gain can compromise either noise performance or available headroom. The Vertere PHONO-1 LX provides enough control to accommodate a wide variety of cartridges without turning the adjustment process into an exercise in laboratory procedure.

Its specified frequency response extends from 20 Hz to 20 kHz within ±0,2 dB. Vertere Limited also quotes a signal-to-noise ratio of at least -78 dB and THD+N of 0,009 %, placing the new phono preamplifier comfortably within the expectations of demanding analogue systems.

Upgrade Programme for Existing Vertere PHONO-1 L Owners

Alongside the launch of the new model, Vertere Limited has announced an upgrade programme for owners of the previous Vertere PHONO-1 L.

Existing customers will therefore be offered an opportunity to bring their current phono preamplifier up to the new technical standard and benefit from the latest developments without necessarily replacing the entire unit.

It is an approach that carries more weight than a token gesture towards product longevity. In a sector where model changes can too easily render a recently purchased component obsolete, a defined upgrade path acknowledges the investment already made by existing customers.

The Key Benefits at a Glance

• Reference development at a more accessible level: Core circuit and engineering work from the Vertere CALON is carried into a considerably less expensive phono preamplifier.
• A cleaner foundation for low-level signals: The revised circuit board, improved power supply and additional RF filtering are designed to keep interference away from the cartridge signal.
• Broad freedom of cartridge choice: Twelve gain settings, fourteen impedance values and nine capacitance options allow the Vertere PHONO-1 LX to be matched to a wide range of MM and MC cartridges.
• Simpler integration into different systems: The more robust grounding switch provides a practical means of adapting the grounding arrangement and addressing potential hum loops.
• A product designed for long-term ownership: A ten-year warranty following registration and the announced upgrade programme add substance to the Vertere PHONO-1 LX beyond its immediate specification.

Price and Availability

The Vertere PHONO-1 LX Phono Preamplifier is available now from authorised specialist retailers. The recommended retail price is € 1.998,-. Following registration with Vertere Limited, the product is covered by a ten-year warranty.

Conclusion

With the Vertere PHONO-1 LX Phono Preamplifier, Vertere Limited demonstrates that meaningful technical progress need not remain confined to a company’s most expensive products. The transfer of key developments from the reference Vertere CALON makes the new model particularly relevant to committed vinyl listeners seeking a carefully constructed and unusually adaptable phono solution without moving into the pricing territory of absolute reference components.

The attraction lies not in one headline specification but in the thoroughness of the revision. Circuit board, power supply, mains filtering, grounding arrangement and enclosure have all been reconsidered, while the extensive gain and loading options give the Vertere PHONO-1 LX the flexibility required to remain useful as cartridges and systems change.

The decision to offer an upgrade programme for owners of the Vertere PHONO-1 L adds further credibility. It suggests that Vertere Limited regards the PHONO-1 series not as a disposable sequence of model years, but as a product platform intended to reward long-term ownership.

Technical Specifications
