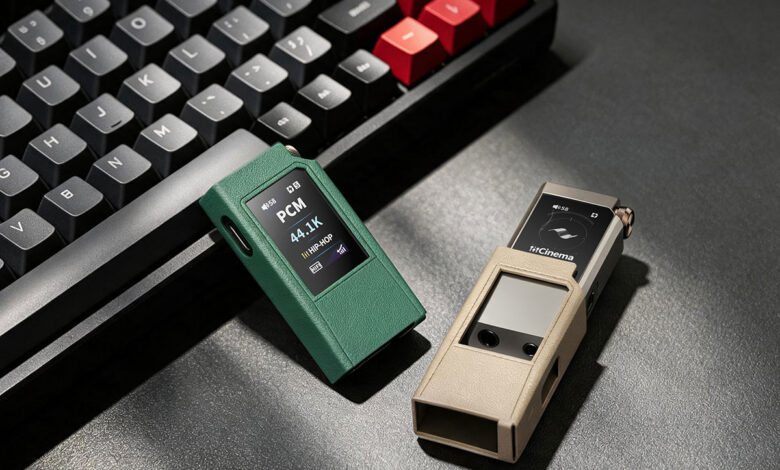

FiiO QX11 – A Desktop DAC That Doubles as a Gaming Headset Hub

Small USB DACs used to have one job: take a digital signal and hand it to a headphone in better shape than a laptop or phone could manage alone. FiiO’s QX11 keeps that job but adds two more to the list, fitting a microphone and a set of gaming-tuned sound profiles into the same aluminium shell. The idea is straightforward — rather than owning a music headphone and a separate gaming headset, a listener can run one pair through the QX11 and let the device handle whichever mode the moment calls for. A second USB-C socket for external power backs this up in a very practical way, opening a higher-output desktop mode and allowing a connected phone or player to charge whilst the music keeps playing.

Stay connected via Google News

Follow us for the latest news, reports and reviews form HiFi Blog.

Key Facts FiiO QX11

• Mobile USB DAC and headphone amplifier with HiFi and gaming modes
• Two ESS ES9069Q DACs; linear PCM up to 32-bit 768kHz and native DSD512
• Two TI OPA1692 and four parallel TI OPA1622 amplifier chips
• 3,5 mm stereo mini-jack and balanced 4,4 mm Pentaconn outputs
• Desktop mode delivering up to 2 x 800 mW at 32 ohms via the balanced output
• Two USB-C ports, with USB-PD charging up to 45 watts
• Built-in microphone plus support for headsets with an inline mic
• AUTO EQ, a 10-band equaliser and four gaming sound profiles
• 1.14-inch colour display, rotary control and a configurable shortcut button
• Available now in Green and Gold at € 159,-

Power on tap when it’s needed

The second USB-C port has one purpose: power. Connect a suitable charger or power bank to it and the QX11 switches into desktop mode, where FiiO quotes up to 800 mW per channel at 32 ohms through the balanced output on high gain. That number describes one particular setup — balanced connection, desktop mode, high gain — rather than a figure that carries over to every output or to battery-only use, so it’s best read as a ceiling for that specific configuration.

The same port pulls double duty during playback. With external power connected, a compatible phone, tablet or portable player can charge through the QX11 whilst audio keeps flowing, courtesy of USB Power Delivery rated at up to 45 watts. What charging speed actually gets delivered depends on the device on the other end. For anyone running the desktop mode away from a wall socket, FiiO also sells its E-STICK power bank separately.

What’s driving the sound

Conversion is handled by a pair of ESS ES9069Q chips, part of the fourth generation of ESS’s 32 bit HyperStream architecture, capable of linear PCM up to 32 bit 768 kHz and native DSD512 with no downsampling required. On the amplification side, two TI OPA1692 op-amps work alongside four TI OPA1622 units wired in parallel purely for driving headphones.

Two headphone outputs are on offer: a standard 3,5 mm stereo mini-jack and a balanced 4,4 mm Pentaconn connector. The 3,5 mm socket has a second function too, outputting a coaxial S/PDIF signal, which turns the QX11 into a USB-to-S/PDIF bridge for feeding an external DAC or a suitably equipped active speaker setup.

Getting the tuning right for a specific headphone

Rather than relying on a single generic sound signature, the QX11 offers AUTO EQ through both a web interface and FiiO’s companion app, applying a correction profile matched to a given headphone model. Preset sound profiles and a 10-band equaliser sit alongside that for anyone who’d rather shape the response manually — a more precise route than a basic bass or treble boost.

That companion app, the FiiO Control app, is currently built for Google Android and covers setup and firmware updates. None of it is required for daily use, though, since the controls that matter most are built into the unit itself.

Music one moment, a match the next

Where the QX11 breaks from a typical USB DAC is its gaming mode, which brings dedicated tuning for shooters, action titles, multiplayer online battle arenas and rhythm games, sitting alongside the standard HiFi mode for music. FiiO’s aim is to push footsteps, gunfire and similar cues forward in the mix so they’re easier to place during play.

Voice communication is covered too, either through the QX11’s own built-in microphone or a headset microphone plugged into the 3.5mm jack. Background noise reduction is included to keep chat clear — a feature that becomes far more relevant the instant someone shifts from listening alone to talking over a live multiplayer session.

Hands-on control, not app-only

A 1.14-inch colour display shows the QX11’s operating status, volume runs through a rotary dial with a push function, and a configurable shortcut button adds quick access to one further setting of the user’s choosing. Volume can be set to either 60 or 120 steps, depending on whether coarse or fine adjustment is preferred.

The aluminium-alloy housing gets some visual character from its finish, sold in Dark Green or Vintage Gold rather than the plain grey or black most USB audio adapters settle for.

Key advantages at a glance

• One headphone, two roles — a built-in microphone lets a music-focused headphone step straight into voice chat.
• Both connector types covered — single-ended and balanced headphones plug in without adapters.
• Extra headroom at a desk — external power switches on the higher-output desktop mode.
• Charging without a pause — USB Power Delivery tops up a connected source whilst audio keeps playing.
• Sound matched to the headphone — AUTO EQ and the 10-band equaliser allow fine, headphone-specific adjustment.
• Settings within reach — the display, rotary dial and shortcut button put key functions on the device itself.
• Room to grow the setup — the S/PDIF output allows pairing with an external DAC or active speakers.

Price and availability

The FiiO QX11 DAC and Headphone Amplifier is available now in Dark Green and Vintage Gold. According to the distributor, pricing is set at € 159,-.

Getting to the Point

The FiiO QX11 earns its keep by treating headphone amplification and voice communication as parts of the same job rather than separate ones. Anyone whose music headphone also ends up on their head during a gaming session gets a built-in microphone, gaming-tuned sound profiles and controls built for switching between the two without friction. The added power input stretches its usefulness at a desk, and being able to charge a source device at the same time takes some of the friction out of longer sessions. At € 159,-, it’s a tidy package from FiiO for headphones that are expected to do more than one thing in a day.

Technical Specifications
